Please check whether the input terminal is short-circuited and whether the output terminal is short-circuited before power on.
Before installation and trial operation, please check and calibrate the wiring on each terminal, make sure that the input and output, AC and DC, positive and negative, voltagevalue and current value are correct to prevent the occurrence of wrong connection. Avoid damaging the power supply and user equipment.

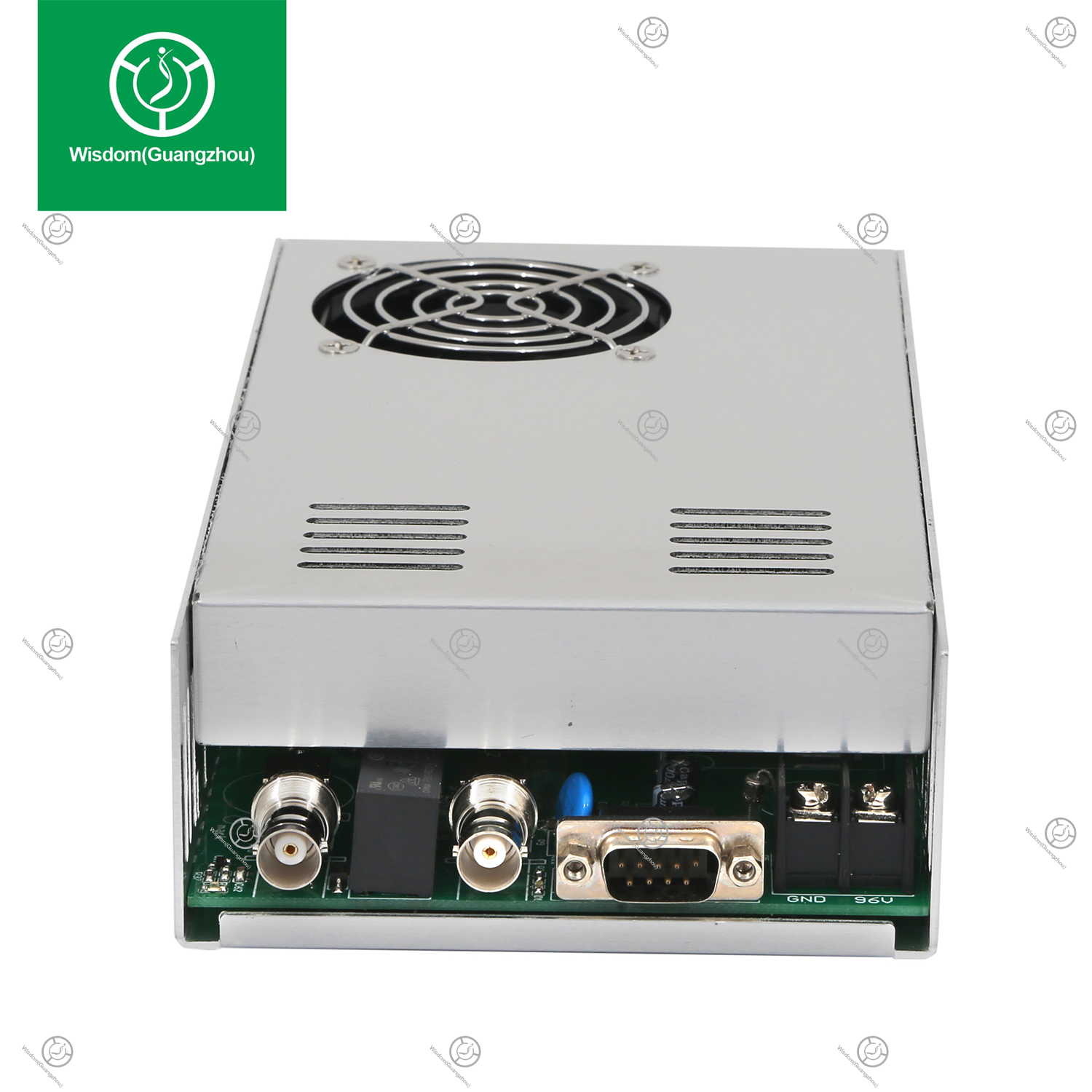

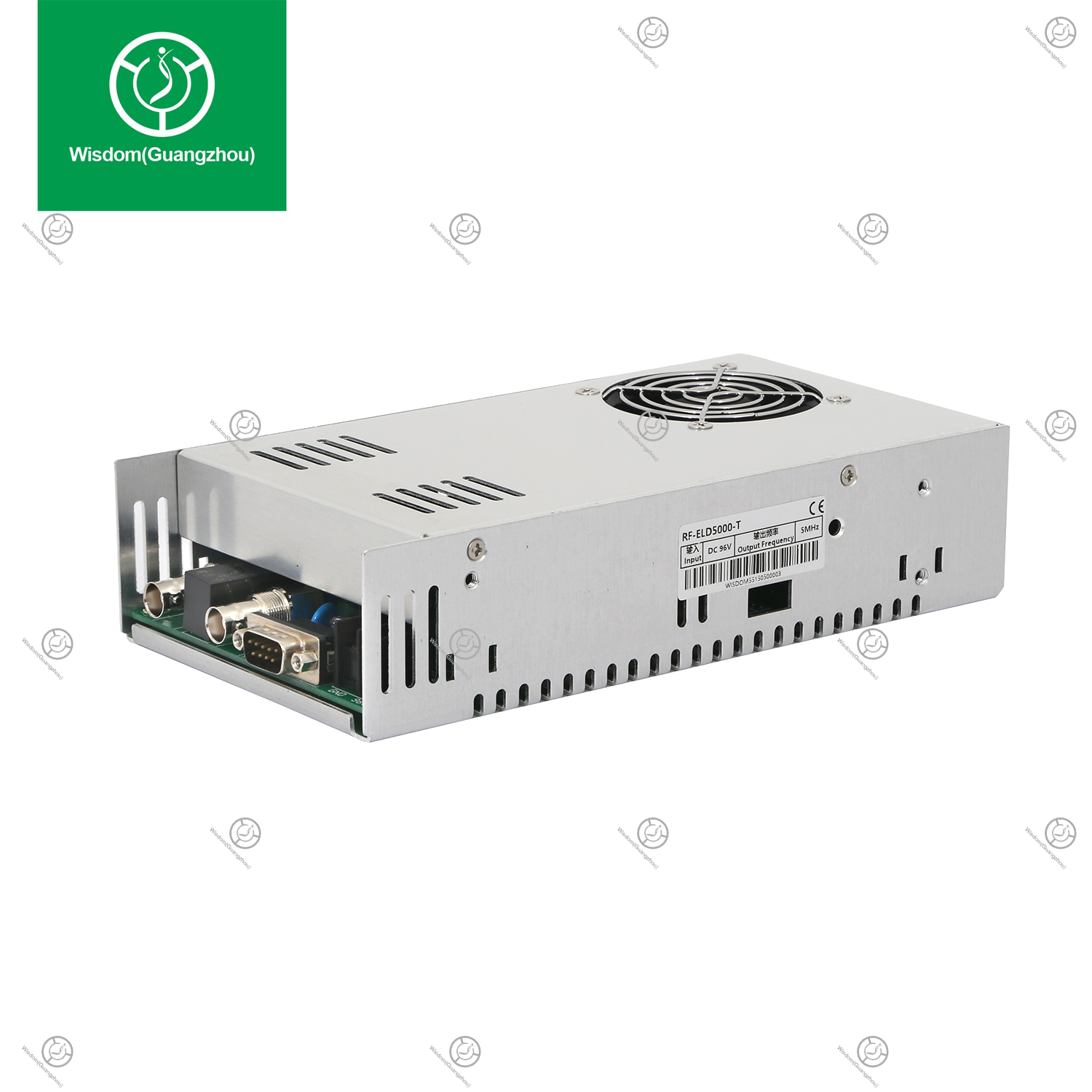

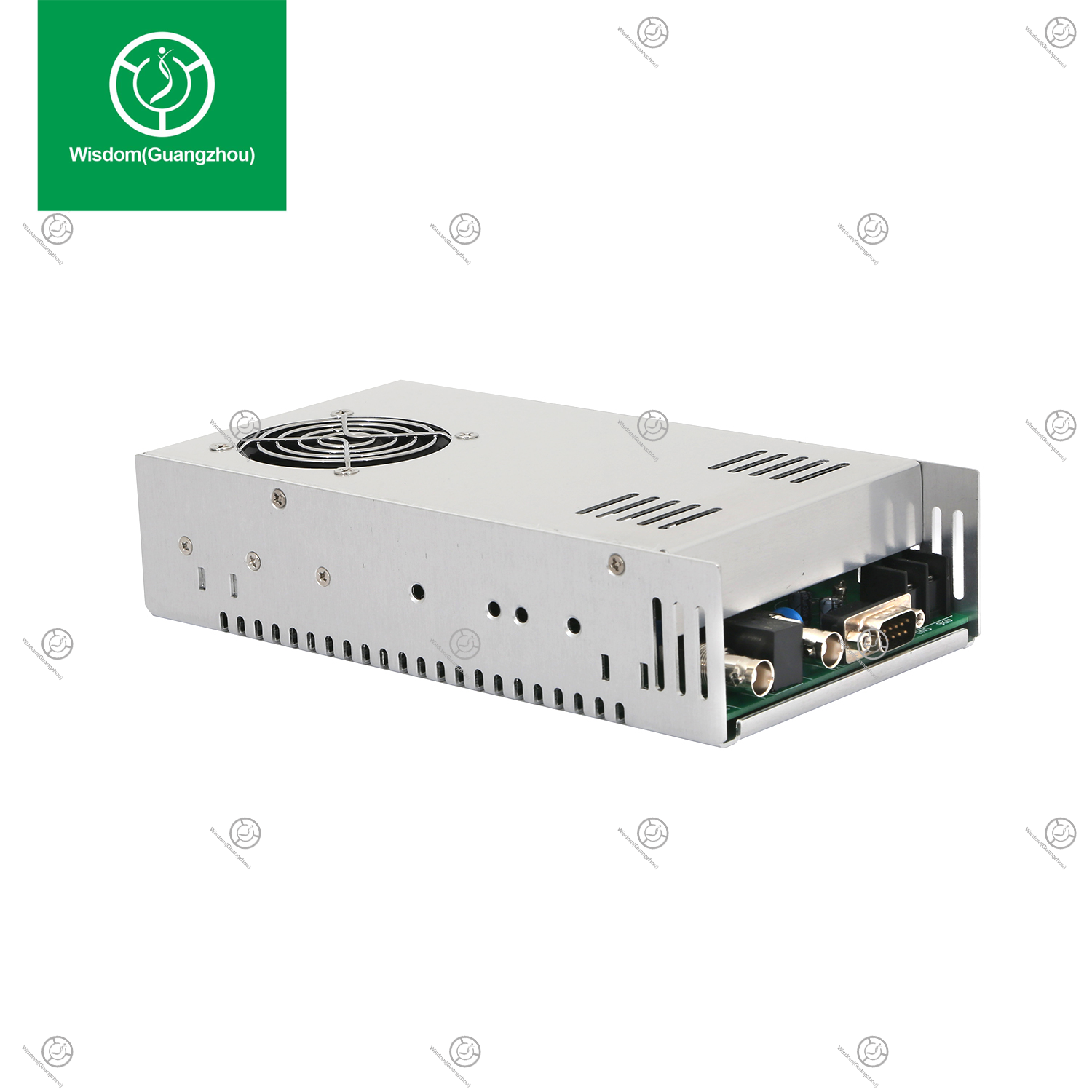

| Product Name | DC96V Input 5M RF Power Supply |
| Model Number | RF-ELD5000-T |
| Size | 217*115*50mm |
| Weight | 0.62kg |
| Input Voltage | 96VDC |
| Output Voltage | MAX. 280V |
| Output Power | MAX. 50W |
| Output Frequency | 5MHz |
| Modulation method | Continuous output / PWM modulation |
| Working Temperature | 0~45℃ |
| Humidity | ≤85% |
The 5M RF power supply and RF handle form a RF beauty system, which can tighten the skin and reduce wrinkles.
1. 96VDC input.
2. Dual channel switching output.
3. Output voltage adjustable.
4. Standardized DB9 control input interface.
5. Standardized BNC output interface.
6. Safe, simple and convenient wiring, cost-effective.
Are you trading company or manufacturer ?We are factory.
How long is your delivery time?Generally 5 days if the goods are in stock.
Do you provide samples ? is it free or extra ?Yes, we offer the sample for value.
What is your payment terms?Western Union/T/T
